Uninitialized VM - bi0sCTF 2025

B4tMite
2025-06-13
Pwn

tl;dr

  • memcpy in CPY goes out-of-bounds of VM stack.
  • Abuse memcpy to copy the register struct to stack and modify the values using stack operations and register operations.
  • Copy values back to the register struct, modifying the VM stack bp and sp registers.
  • This migrates the VM stack to wherever you want, gaining arbitrary read and write.
  • Leak environ pointer to get stack leak.
  • Migrate VM stack to main function’s stack to overwrite return address with ROP chain or one-gadget.

Challenge Points: 415
No. of solves: 35
Challenge Author: B4tMite

Introduction

This was my first time making a challenge for bi0sCTF. I didn’t really have a whole lot of experience solving VM challenges before this so I figured I’d learn how VMs work and make a challenge about it.

Challenge Description

Just cooked up a simple VM, forgot to check for bugs tho.

Handout Files:

  • vm_chall
  • Dockerfile
  • libc.so.6
  • ld-linux-x86-64.so.2
  • flag.txt

Initial Analysis

The binary has all protections enabled and the libc is the latest version, 2.41.

1
2
3
4
5
6
Arch:       amd64-64-little
RELRO:      Full RELRO
Stack:      Canary found
NX:         NX enabled
PIE:        PIE enabled
Stripped:   No
1
2
GNU C Library (GNU libc) stable release version 2.41.
Compiled by GNU CC version 15.1.1 20250425.

We are given an unstripped binary without debug symbols. There are only 2 important functions: main and expand. We can look at expand once we figure out how main works.

Reversing

Structs

The main function starts by allocating memory using calloc for what appears to be 2 structs. We can name these as st_1 and st_2 until we know more.

1
2
3
4
5
6
7
init(argc, argv, envp);
v52 = 0;
len = 257;
dest = 0LL;
src = 0LL;
buf = calloc(0x900uLL, 1uLL);
v56 = calloc(0x58uLL, 1uLL);

st_2‘s members are initialised with values that point to the end of st_1. The first member of st_2 may be our VM’s PC as we can see in the later section of the code that it is used to make decisions depending on the bytecode.

1
2
3
4
5
6
7
8
9
st_2[2] = st_1 + 0x8F8;
st_2[1] = st_2[2];
*st_2 = st_1;
printf("[ lEn? ] >> ");
__isoc23_scanf("%hd", &len);
len = len;
printf("[ BYTECODE ] >>");
read(0, st_1, len);
while ( *st_2 < (st_1 + len) )

We can define a struct that fits our assumptions of the structure. The first member is the pc pointer. The second member points to the end of the first struct and the third is a copy of the second, probably meant for iteration. That’s 3 members however the struct still has 0x40 bytes of space left, we can assume this is used for storing other values and leave it defined as a continuous array to fit the size of the struct. We get the following struct.

1
2
3
4
5
6
7
struct track
{
  char *pc;
  __int64 *mem_ptr;
  __int64 *mem_end;
  char store[64];
};

The VM appears to use st_1 to keep track of where the bytecode is stored.

1
2
3
4
struct bytec
{
  char *code_mem[2304];
};

Now we get to the interpreter, the first opcode we see appears to set the pc value to whatever is the value of the next byte after the opcode. This must be a JMP instruction. We can conclude that the byte 0x45 will advance pc by whatever value the byte following opcode happens to be.

The next condition accounts for what has to happen if the opcode value was beyond 0x45. The expand function is called and the user is prompted for the length and bytecode. This part appears to reset the VM stack and registers.

1
2
3
4
5
6
7
8
9
10
11
12
13
}  else
  {
    v54 = expand(&st_2, &st_1);
    if ( v54 == 1 )
    {
perror("CALLOC FAIL");
      return 1;
    }
    printf("[ lEn? ] >> ");
    __isoc23_scanf("%hd", &len);
    len = len;
    printf("[ BYTECODE ] >>");
    read(0, st_1, len);

In the next instruction we see that, the store member of st_1 is accessed using operand 1 of the opcode (which is the next byte). Considering that it is indexed by 8 each time, we can update the definition of store to __int64 store[0x40]. store appears to be the set of registers for the VM so we can change store to regs.

Now we can look at the instructions that operate on other parts of memory, starting with case 0x31. We see that st_1->mem_ptr keeps getting updated each time the opcode executes. It also assigns the value of operand 1 to the decremented mem_ptr. This appears to be a PUSH instruction. There also appear to be several unique variables with the same parameters being used for each opcode. We can remap all of these to a single variable name to clean up the decompilation.

The working of the PUSH instruction also allows us to infer that the first 2 members of the st_1 struct are the sp and bp of the VM stack. The VM stack also grows from the bottom of the chunk to the top, therefore just like the actual function stack from higher to lower memory addresses.

1
2
3
4
5
6
7
struct track
{
  char *pc;
  __int64 *sp;
  __int64 *bp;
  __int64 *regs[64];
};

In the next opcode, we seem to have a call to memcpy. This segment of the code also refers to a certain location in st_2->code_mem. This area has been referred to in multiple checks for other opcodes as well. Let’s assume this is storing data rather than being used directly in operations. It is also dereferenced as an __int64 *. We can redefine the struct as follows.

1
2
3
4
5
struct bytec
{
  char code_mem[256];
  __int64 data_mem[256];
};

Opcodes

Since we’ve deconstructed the track struct, we can skip ahead and see that the VM has the following opcodes that operate exclusively on the st_2 registers:

  • SUB
  • ADD
  • SHL
  • SHR
  • NOT
  • XOR
  • OR
  • AND
  • MOV
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
switch ( opc )
{
  case 0x44:                              // SUB
    r8_1 = *++reg->pc & 7;
    reg->regs[r8_1] = (reg->regs[r8_1] - reg->regs[*++reg->pc & 7]);
    ++reg->pc;
    break;
  case 0x43:                              // ADD
    r8_1 = *++reg->pc & 7;
    reg->regs[r8_1] = (reg->regs[r8_1] + reg->regs[*++reg->pc & 7]);
    ++reg->pc;
    break;
  case 0x42:                              // SHL
    r8_1 = *++reg->pc & 7;
    reg->regs[r8_1] = (reg->regs[r8_1] << reg->regs[*++reg->pc & 7]);
    ++reg->pc;
    break;
  case 0x41:                              // SHR
    r8_1 = *++reg->pc & 7;
    reg->regs[r8_1] = (reg->regs[r8_1] >> reg->regs[*++reg->pc & 7]);
    ++reg->pc;
    break;
  case 0x40:                              // NOT
    ++reg->pc;
    reg->regs[*reg->pc & 7] = ~reg->regs[*reg->pc & 7];
    ++reg->pc;
    break;
  case 0x39:                              // XOR
    r8_1 = *++reg->pc & 7;
    reg->regs[r8_1] = (reg->regs[r8_1] ^ reg->regs[*++reg->pc & 7]);
    ++reg->pc;
    break;
  case 0x34:                              // MOV
    r8_1 = *++reg->pc & 7;
    reg->regs[r8_1] = reg->regs[*++reg->pc & 7];
    ++reg->pc;
    break;

Once the bytec struct is applied to st_2,` we can see that the rest of the operations have become easy to understand, and we get the following operations:

  • CPY
  • MOV_R_X
  • POP_R
  • PUSH
  • PUSH_R
  • JMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
case 0x36:                          // CPY
  mem = (mem + 256);
  dest = mem + 8 * reg->regs[*++reg->pc & 7];
  mem = (mem + 256);
  src = mem + 8 * reg->regs[*++reg->pc & 7];
  r8_1 = *++reg->pc - 1;
  reg->pc += 2;
  memcpy(dest, src, r8_1);
  break;
case 0x35:                          // MOV_R_X
  r8_1 = *++reg->pc & 7;
  reg->regs[r8_1] = *++reg->pc;
  reg->pc += 8;
  break;
case 0x33:                          // POP_R
  if ( reg->bp >= reg->sp )
  {
    r8_1 = *++reg->pc & 7;
    reg->regs[r8_1] = *++reg->sp;
    ++reg->pc;
  }
  break;
case 0x31:                          // PUSH
  if ( reg->sp >= mem->data_mem )
  {
    op = *++reg->pc;
    sp = reg->sp;
    reg->sp = sp - 1;
    *sp = op;
    ++reg->pc;
  }
  break;
case 0x32:                          // PUSH_R
  if ( reg->sp >= mem->data_mem )
  {
    r8_1 = *++reg->pc & 7;
    sp = reg->sp;
    reg->sp = sp - 1;
    *sp = reg->regs[r8_1];
    ++reg->pc;
  }
  break;

Going back to the opcode using the memcpy, we can see that operand 1 and 2 specify the index in st_1->data_mem to copy from and to. Operand 3 specifies the number of bytes to be copied. We can also rename the structs st_1 to mem and st_2 to regs.

Now that we’ve retrieved the structs, the expand function is easier to read. We can see that the function copies the data from the existing mem and regs structs into newly allocated buffers after freeing the old chunks. The function is called only when the interpreter cannot execute any recognisable opcodes.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
__int64 __fastcall expand(bytec *mem, regs *reg)
{
  char *new_mem; // [rsp+18h] [rbp-18h]
  _QWORD *new_reg; // [rsp+20h] [rbp-10h]

  new_mem = calloc(0x900uLL, 1uLL);
  new_reg = calloc(0x58uLL, 1uLL);
  if ( new_mem == -1LL || new_reg == -1LL )
  {
    perror("CALLOC FAIL");
    return 1LL;
  }
  else
  {
    memcpy(new_mem + 256, reg->pc + 256, 0x800uLL);
    memcpy(new_reg, *mem->code_mem, 0x58uLL);
    new_reg[2] = new_mem + 2296;
    new_reg[1] = *(*mem->code_mem + 8LL) - *(*mem->code_mem + 16LL) + new_reg[2];
    *new_reg = new_mem;
    free(reg->pc);
    free(*mem->code_mem);
    reg->pc = new_mem;
    *mem->code_mem = new_reg;
    return 0LL;
  }
}

Exploitation

Vulnerability

The bug lies within the CPY opcode. There are no conditions to check whether a given size for the memcpy‘s third argument causes the copy to go out of bounds of the mem->data_mem. If we give the destination index to be the beginning of the VM stack, we can copy up to 256 bytes from or to the outside of the chunk.

Note: The VM stack has been implemented to grow from higher to lower addresses. This means any new items pushed onto the VM stack appear at the bottom of the chunk.

We can use the out-of-bounds copy to copy the regs struct onto the VM stack where we can operate on it. This allows us to modify the register values and copy it back to the regs struct, which provides us with control over the regs struct.

alt text

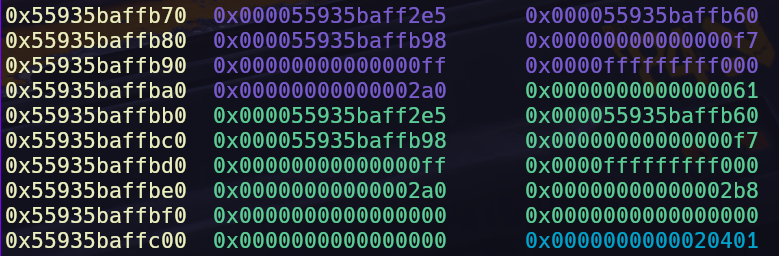

regs struct right below the vm stack

Overwriting the regs struct

We have no way to print out information to stdout. We can, however, copy the values from the register struct to the VM stack, modify them using the VM operations and copy them back to the register struct. Having control over the register struct allows us to control the values of the VM stack bp, sp and pc. This allows us to write or read using the stack operations anywhere we can get an address to.

Currently we need a way to write to the actual function stack, we can do so by leaking the value of environ. To do so we will need a libc address somewhere on the stack since we can only copy to and from the VM stack and the register struct.

This is where the expand function comes in, expand frees the current VM memory and register structs, which leaves an unsorted bin pointer on the old stack. This gives us 4 chunks to play with, the old memory and register struct and the newly allocated memory and register struct.

There are 2 ways to obtain the libc leak:

  1. You can copy the register struct to the VM stack and modify the bp and sp register values to point around the forward and next pointers of the old chunk. Note that we will need to store the address values into one of the VM registers so that we can use it for later. I used this approach in my exploit.

  2. The second approach, which is easier, is to trigger the expand function twice, which will restore our current stack and register struct to the intial chunks. This would allow us to copy the forward and head pointers directly into the VM stack, as the free list pointers of the old stack and libc would be right below the current register struct.

Note: you need to pre-expand the stack such that you can pop the values you copied onto the stack into the registers. You may also want to set the sp register to point to the value you wish to pop directly into the registers.

alt text

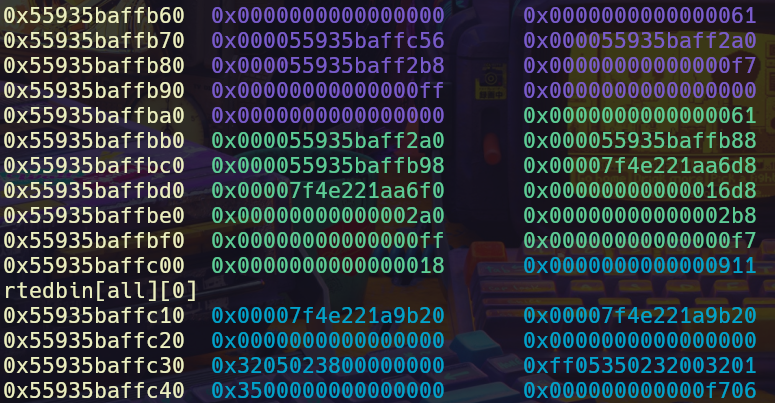

unsorted bin pointers of the old mem struct right below the regs struct

Getting a stack leak

Using the obtained libc address, we can use any combination of the other opcodes to modify the addresses to our liking. I used the AND operation to get the address without its lower 3 bits and ADD to offset the address. Once we’re done modifying the bp and sp address to where we want them and setting up the stack appropriately to modify the registers we want, we can copy it back to the register struct to change the VM stack.

alt text

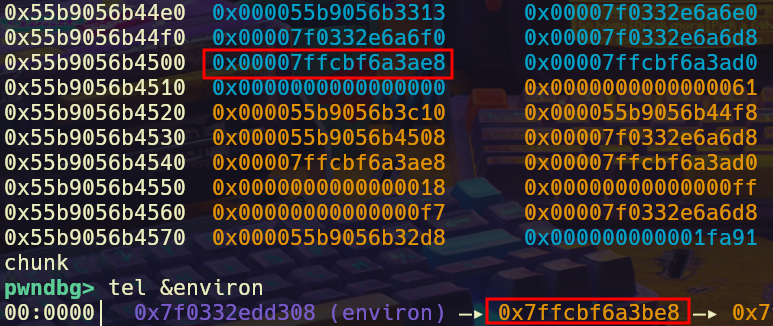

environ pointer copied to the stack

We can directly pop the environ address into one of the registers for later usage.

Overwriting the return address

Now that we’ve obtained libc and stack addresses in one of the registers we can migrate the VM stack over the function stack and overwrite the return address with a one-gadget or ROP chain. Make sure the VM sp points right below the return address if you’re using a one-gadget. We will be using the VM PUSH opcode to push our payload onto the main stack.

alt text

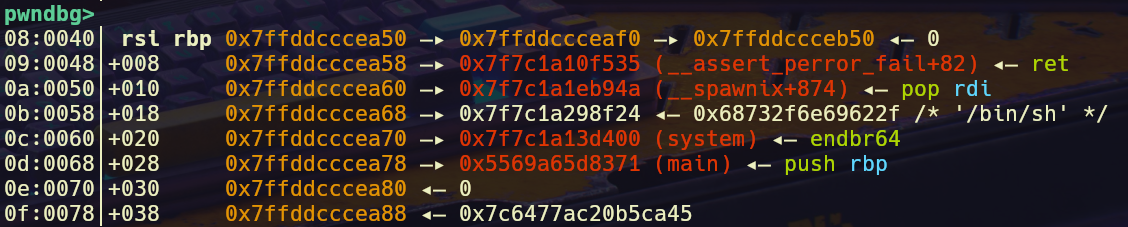

rop chain pushed onto the stack

Conclusion

This challenge was initially meant to be slightly more difficult to exploit; however, I changed my idea once I noticed the current bug since the exploitation of the previously intended bug didn’t seem very feasible. There are a few other bugs in the other opcodes which I let remain since they didn’t seem to provide any useful primitives. I hope I can pull off a harder and more interesting challenge for the next bi0sCTF.

Flag: bi0sctf{1ni7ia1i53_Cr4p70_pWn_N3x7_5$67?!@&86}

Final Exploit

You can find the challenge sources and my exploit script here
